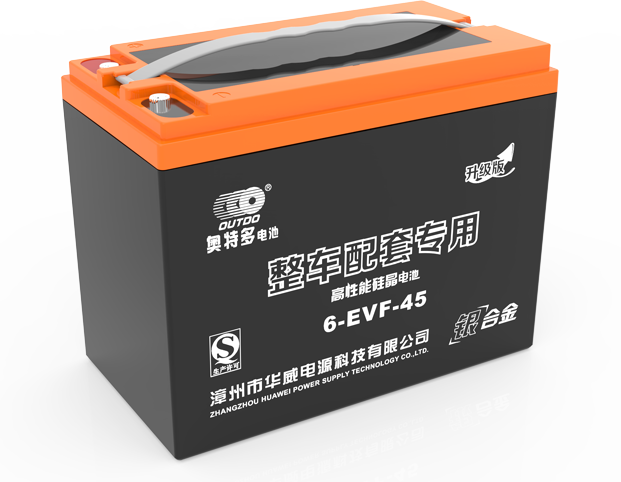

Electric Vehicle Battery – For Tricycle

Lead-acid batteries for electric tricycles are DC power supplies. They can also be used as DC power supplies for other aspects such as electric vehicles.

Features

1.Large capacity

Adopting patented structure design, found the maximum effective of the battery. The 2Hr capacity is 5% -10% higher than similar products.

2.Excellent High current discharge performance

The grid adopts the latest structure of thin horizontal ribs and vertical ribs, which greatly reduces the ohm resistance of the battery. When the large current

discharges, the internal electrochemical reaction is uniform, the voltage drop less, and the recovery performance good after deep discharge.

3.Better grid corrosion resistance

Unique patented alloy material, make grid has superior corrosion resistance and creep resistance;

4.High utilization of active substances

The patented refine the tetrabasic lead sulphate particles produced in the paste and curing, which improves the utilization of active materials and greatly

improves the output of the battery;

5.Minimal water losses

Increase the amount of liquid added to the battery to solve the problem of dehydration and battery expansion at the end of the battery life;

6.Low self-discharge rate

A certain amount of negative electrode additive is added to the negative electrode active material by a special process method, which not only has the effect

of overcoming self-discharge, but also reduce the power consumption by 79% at the time of initial charging.

7.Low temperature performance

Highly active conductive materials and low-temperature expansion are added to the plates, which is superior low-temperature charge and discharge

capabilities, which prevents the battery's continuous mileage from declining in winter.

8.Safe and reliable

Each valve of the battery box is independently designed, with automatic anti-early drying and detachable safety valve. The valve not only has the function of

checking the fluid replacement of the common battery, but also has the sealing function of the one-way exhaust of the sealed battery, making the battery

Less water loss during charge and discharge process, higher sealing efficiency, use of high capacity, no liquid leakage, high gas recombination function on

electric bicycles, and easy removal of safety in the event of maintenance Valve maintenance

9.Long service life

Under standard conditions DOD80% can perform 600-800 cycles, and 1 time charges is able to travel 40~60Km.

	Model	Terminal	Dimensions(mm)	Weight±0.15(Kg)	Download
Tricycle	6-EVF-32.8 orange black	D2	22393176	9.5
Tricycle	6-EVF-35 orange black	D2	26778170	9.8
Tricycle	6-EVF-39.2 orange black	D2	223105174	11.3
Tricycle	6-EVF-46.8 orange black	D3	223121174	12.6
Tricycle	6-EVF-52 orange black	D3	223121174	13.7
Tricycle	6-EVF-58 orange black	D3	223135178	14.8
Tricycle	6-EVF-65 orange black	D3	223150178	16.3
