DS-LiFePO4 Energy



Advisory Message

Details

Specifications

Terminal Specifications

OUTDO
Digital screen intelligent storage lithium battery

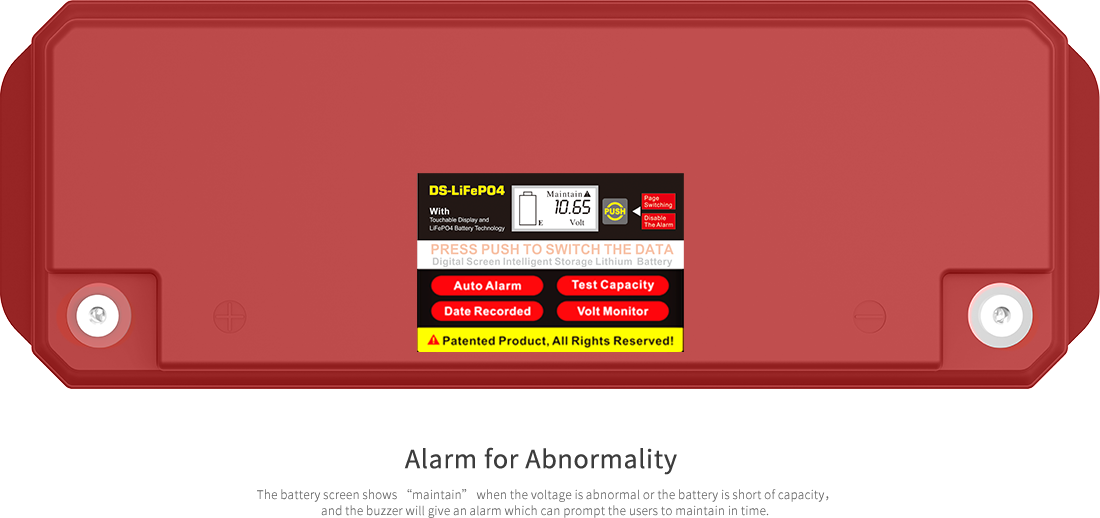

1.Intelligent product— monitors battery status in real time, alarms automatically in case of battery abnormality 2.Adoption of LiFePO4 cell— features Environmental-friendliness, Long service life, deep discharge, light weight, high security. 3.Fast charge and big current discharge—50A to charge, 120A to continuously discharge, 180A to peak discharge. 4.The high-waterproof design—above IP66, meets the use at harsh environment. 5. Easy to use and maintain— can be installed in any direction, maintenance free.

电池


电池



Safe Use Precautions



Safe Precautions

1.Do not dismantle for repair or modification, which may cause the system failure leading to the unusable battery.

2.Do not short-circuit the positive and negative poles of the system or system groups, otherwise it will cause an electric shock, a fire or the malfunction.

3. Please firmly connect to the bolt part of the terminal, if loose, which may bring about a fire.

4.Do not let the battery be contaminated with oil, water or other chemicals, otherwise there will be an electric shock, a fire, or the malfunction.

5.Be sure to cut off the main power when installing the connection, or there is a risk of electric shocks.

6.Do not connect to a power supply other than the rated voltage, otherwise there will be a fire or the malfunction.

7.Do not use the system directly as AC power, otherwise it may cause a fire, a fault, or the damage.

8.Do not place the system near fire or heat, so as not to cause an explosion.

9.Charging process will produce the trace gas, when using the battery, please pay attention to ventilation and heat dissipation as well as Maintain it in the ventilation conditions.

Precautions for Use

1.Do not store and use the battery in the following cases, otherwise it will cause a fault, the shell crack, the leakage and so on.

1.1.Places below-40°C or above + 50°C.

1.2.Outdoor and other places where directly exposed to rain or sunshine.

1.3.Foggy or icy places

1.4.Locations with corrosive gases.

1.5.Relatively humid or dusty places

1.6.Occurrence of shock or impact.

1.7.It should be stored in a cool, dry, clean environment.

2.LCD screen maintenance

2.1.Avoid hard objects to pressure the control panel.

2.2.Keep the screen clean and dry.

2.3.Check the system display frequently.

2.4.Be aware of the buzzer alarm.

2.5.Handle timely when the buzzer alarms.



Battery Type Model
(V)
Capacity
(Ah)
Standard Power
(Wh)
Terminal Polarity charge current
(A)
fast charge current
(A)
Max Current
(A)
Dimensions ±2
mm
Weight
kg
Lead-acid Battery Model Download

Cylindrical Battery
CNLFP4-6(DS) 6.4 4 25.6 F1 + - 0.8 2 2 71*48*100*T107 0.37 OT3-12(GEL) 302150036-00048
CNLFP4-12(DS) 12.8 4 51.2 F2 + - 0.8 2 4 91*72*100*T105 0.53 OT4-12(GEL) 302150036-00049
CNLFP5-12(DS) 12.8 5 64 F2 + - 1 2.5 4 91*72*100*T105 0.63 OT5-12(GEL) 302150036-00050
CNLFP6-12(DS) 12.8 6 76.8 F2 + - 1.2 3 5 151*64*95*T100 0.80 OT7-12(GEL) 302150036-00051
CNLFP8-12(DS) 12.8 8 102.4 F2 + - 1.6 4 5 151*64*95*T100 0.86 OT7.5-12(GEL) 302150036-00052
CNLFP12-12(DS) 12.8 12 153.6 F2 + - 2.4 6 10 151*100*102*T105 1.58 OT12-12(GEL) 302150036-00053
CNLFP20-12(DS) 12.8 20 256 LC1 + - 4 10 20 184*79*172 2.93 OT20-12(GEL) 302150036-00021
CNLFP24-12(DS) 12.8 24 307.2 LC2 + - 4.8 12 20 166*175*126 3.08 OT24-12(GEL) 302150036-00054
CNLFP30-12(DS) 12.8 30 384 LC3 + - 6 15 30 197*166*173 4.40   302150036-00073
CNLFP38-12(DS) 12.8 38 486.4 LC3 + - 7.6 19 30 197*166*173 5.08 OT38-12(GEL) 302150036-00020
CNLFP55-12(DS) 12.8 55 704 LC5 + - 11 27.5 40 228*138*215 7.30 OT55-12(GEL) 302150036-00055
CNLFP60-12(DS) 12.8 60 768 LC4 + - 12 30 40 358*166*173 7.50 OT60-12(GEL) 302150036-00056
CNLFP65-12(DS) 12.8 65 832 LC4 + - 13 32.5 40 358*166*173 7.80 OT65-12(GEL) 302150036-00057
CNLFP75-12(DS) 12.8 75 960 LC5 + - 15 37.5 60 260*170*215 9.30 OT75-12(GEL) 302150036-00058
CNLFP80-12(DS) 12.8 80 1024 LC4 + - 16 40 60 331*173*220 9.90 OT80-12(GEL) 302150036-00059
CNLFP100-12(DS) 12.8 100 1280 LC4 + - 20 50 60 331*173*220 11.70 OT100-12(GEL) 302150036-00001
CNLFP120-12(DS) 12.8 120 1536 LC4 + - 24 60 60 331*173*220 13.70 OT120-12(GEL) 302150036-00060
CNLFP150-12(DS) 12.8 150 1920 LC4 + - 30 60 60 484*170*241 17.90 OT150-12(GEL) 302150036-00061
CNLFP200-12(DS) 12.8 200 2560 LC4 + - 40 60 60 484*170*241 22.25 OT200-12(GEL) 302150036-00003
CNLFP50-24(DS) 25.6 50 1280 LC4 + - 10 25 40 331*173*220 10.80 / 302150036-00062
CNLFP100-24(DS) 25.6 100 2560 LC5 + - 20 50 60 522*240*222 23.10 / 302150036-00063
CNLFP120-24(DS) 25.6 120 3072 LC5 + - 24 60 60 522*240*222 27.96 / 302150036-00064

Square Aluminum
Shell Battery
CNLFP50-12(F)(DS) 12.8 50 640 LC5 + - 10 25 50 228*138*215 5.80 OT55-12(GEL) 302150036-00065
CNLFP60-12(F)(DS) 12.8 60 768 LC5 + - 12 30 60 260*170*215 6.80 OT60-12(GEL) 302150036-00066
CNLFP75-12(F)(DS) 12.8 75 960 LC4 + - 15 37.5 75 331*173*220 8.50 OT75-12(GEL) 302150036-00067
CNLFP100-12(F)(DS) 12.8 100 1280 LC4 + - 20 50 100 331*173*220 11.20 OT100-12(GEL) 302150036-00068
CNLFP150-12(F)(DS) 12.8 150 1920 LC4 + - 30 75 100 484*170*241 14.30 OT150-12(GEL) 302150036-00069
CNLFP200-12(F)(DS) 12.8 200 2560 LC4 + - 40 100 100 522*240*222 19.30 OT200-12(GEL) 302150036-00070
CNLFP50-48(F)(DS) 48 50 2400 TC1002 + - 10 50 50 484*430*134 25.00 / 302150036-00080
CNLFP80-48(F)(DS) 48 80 3840 TC1002 + - 16 80 80 484*500*178 40.00 / 302150036-00081
CNLFP100-48(F)(DS) 48 100 4800 TC1503 + - 20 100 100 484*500*178 42.00 / 302150036-00082
CNLFP120-48(F)(DS) 48 120 5760 TC1503 + - 24 100 100 484*500*223 54.00 / 302150036-00083
CNLFP150-48(F)(DS) 48 150 7200 TC2003 + - 30 100 100 484*680*178 68.00 / 302150036-00084
CNLFP200-48(F)(DS) 48 200 9600 TC2003 + - 40 100 100 484*550*223 85.00 / 302150036-00085
CNLFP50-48(F)(DS)(FPBG) 48 50 2400 TC1003 + - 10 50 50 557*350*135   /
CNLFP100-48(F)(DS)(FPBG) 48 100 4800 TC2003 + - 20 80 80 614*398*167   /
CNLFP150-48(F)(DS)(FPBG) 48 150 7200 TC2003 + - 30 100 100 844*500*135   /
CNLFP200-48(F)(DS)(FPBG) 48 200 9600 TC2003 + - 40 100 100 752*530*167   /

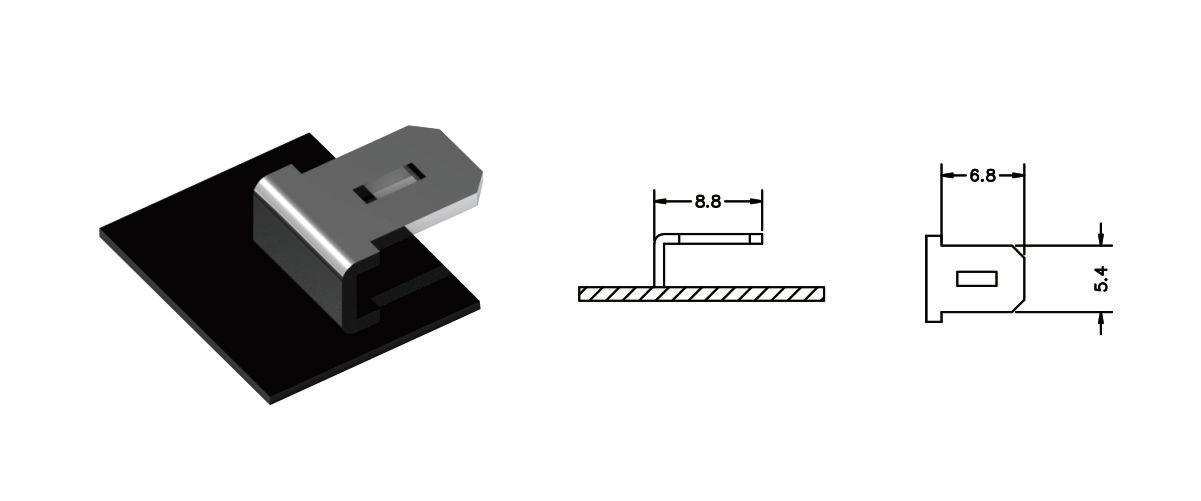

F2端子

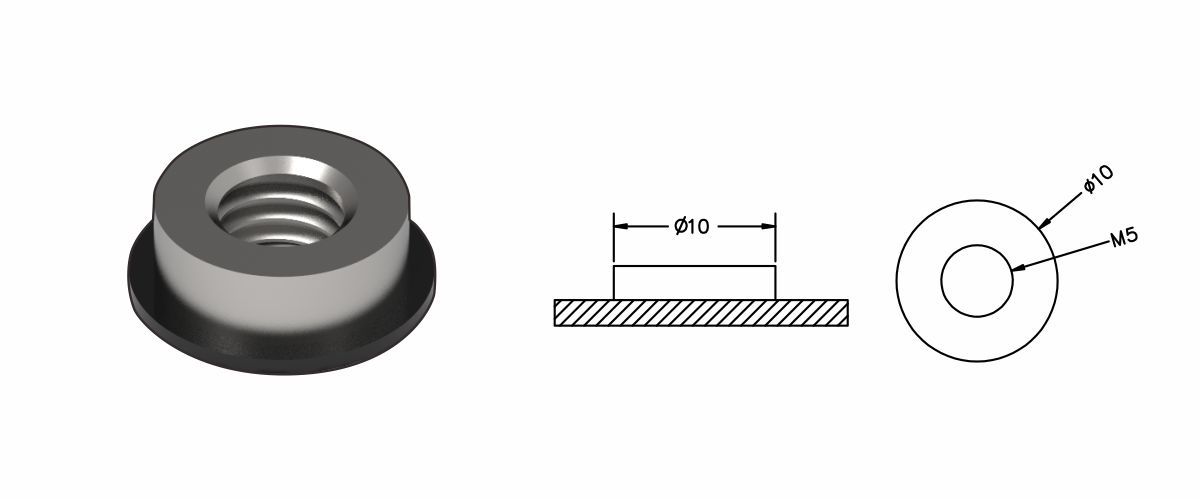

LC1

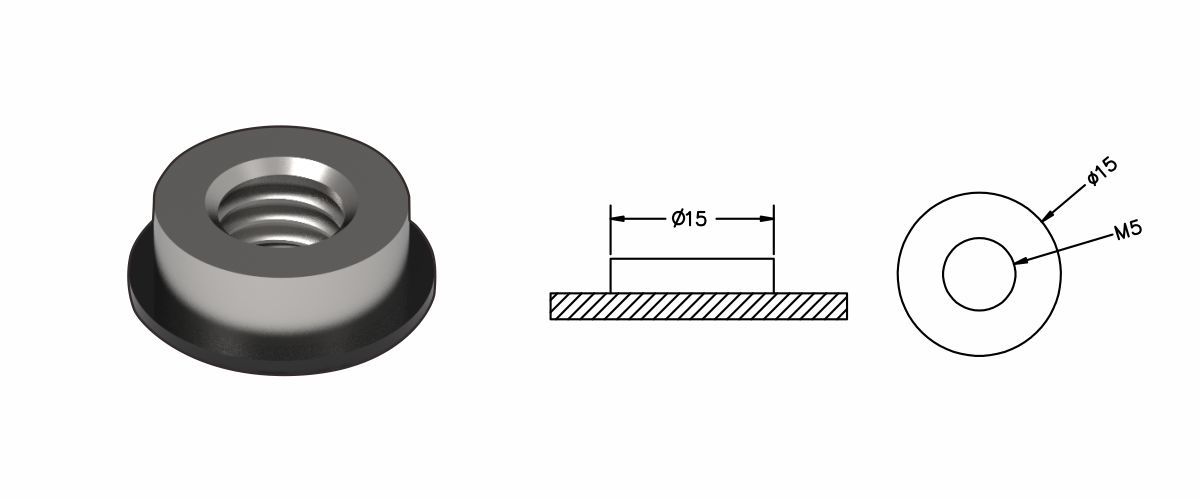

LC2
LC3

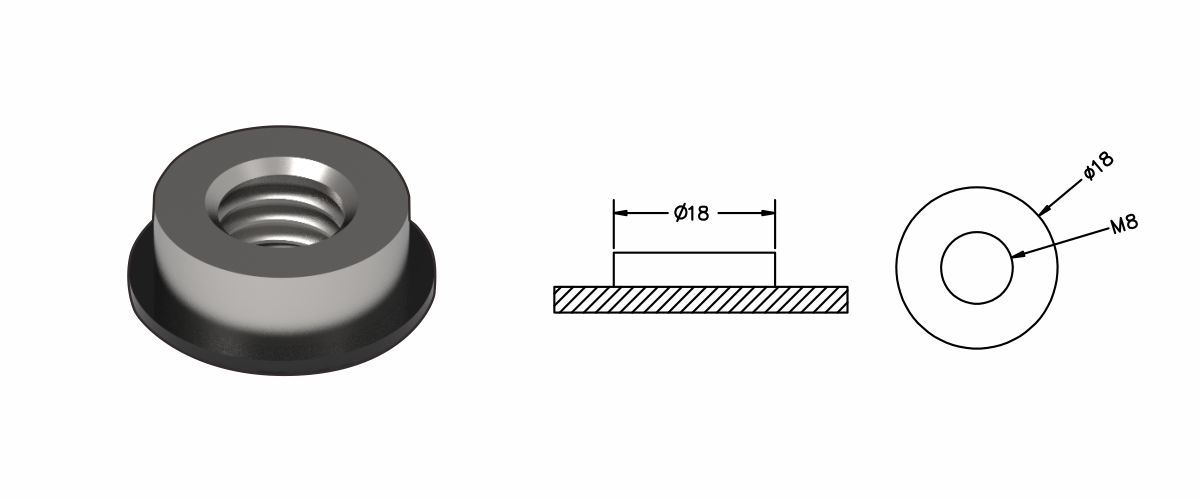

LC4

富文本4
