iGEL


Category: Motorcycle Battery


Advisory Message
  • 产品描述
  • Specifications
  • Terminal Specifications

    • Commodity name: iGEL
    • Commodity ID: 976922168447033344
    • 产品名称: 数显密封式摩托车用铅酸蓄电池


    OUTDO

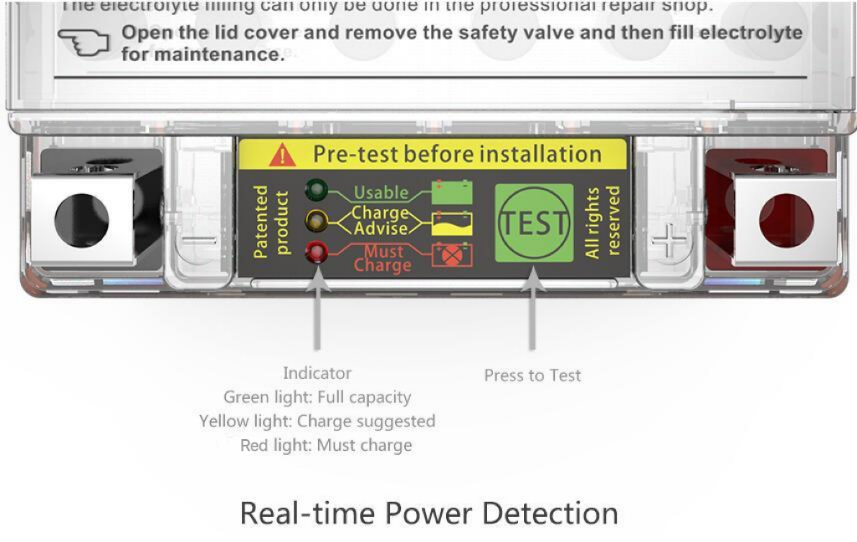

    Capacity Intelligent Detected Motorcycle Battery

    With built-in chip, iGEL battery has self-test function for users to real-time monitors battery capacity and to maintain battery when battery capacity is low, therefore battery service life can be prolonged.



    电池
    Push-to-open Lid Cover
    Adding acid for maintenance by opening lid cover to prolong the battery service life.
    电池
    电池
    Injected with Gel electrolyte instead of acid, the battery is of super performance.



    ◆ Higher capacity.

    ◆ Good performance in the low temperatures, can meet requirements of starting currents in -30℃ to -50℃.

    ◆ Stable characteristic in high temperatures, can meet requirements of its usage in temperature of 65℃ and even higher.

    ◆ Longer cycle service life than normal lead acid battery type.





    Safe Use Precautions

    I. Warning

    1. The inside electrolyte will corrode metal, cotton product, stone. Use properly.

    2. Do not place the battery against the side or upside down to prevent acid leakage

    3. The hydrogen will be generated during the working and discharging of battery which will cause explosion if there were fire. Pay attention for the following

    3.1. Maintain and use the battery where is ventilate

    3.2. No sparks and flame when the battery is in maintenance

    3.3. If the battery is charging outside the vehicle which can’t be installed immediately after finish charging until laying at lease 10min to release the hydrogen generated inside

    the battery.

    3.4. After riding, the battery can’t be dismounted immediately until laying for at least 10 mins

    3.5. During charging, the ambient temperature should not be over 45 OC, Otherwise cooling by water or by reducing the charging current and charging volts.

    4. DO NOT place the metal tool or conducting matter nearby the terminal in case short-circuit the terminal

    5. DO not knock the terminal by hammer during the battery installation

    6. Be safe during carrying to prevent hitting

    II. Installation and Maintenance

    1. Always connect the positive terminal firstly.

    DO NOT reverse polarity otherwise the electrical equipment of motorcycle will damage.

    Caution:

    *Some can’t be activated due to the different performance of different vehicle. Start the engine for more times or step on gas which can more easily to activate.

    *Manual activation is recommend to achieve exact date recorded.

    2. During acid filling, wearing acid-proof cloths, rubber boots, shield glass and rubber glove etc.

    If the skin and clothes are splashed by acid, wash by large quantity of water. Seek medical help if necessary.

    3. DO NOT over discharging the battery, charging the battery timely after discharging.

    4. Dismount or disconnect the negative terminal of battery if the motorcycle hasn’t been in service for long term.

    5. DO NOT check the battery has power or not by short-circuit the terminal.

    6. Regularly check the terminal connection and the surface of terminal is clean or not to ensure well connection.

    7. Storage the battery where is 5~25OC, dry, ventilated and no direct sunshine. Keep the battery at least 2m away from the heat source. Regularly check and maintain the battery.



  • 系列 型号 电压
    (V)
    容量
    (Ah)
    小时率
    (HR)
    电池尺寸±2
    (MM)
    电池尺寸
    (inch)
    极性 重量
    (KG)
    端子形式 充电电流 仪表CCA   (25±5℃) CCA    (-18℃) 参数表下载
    YB系列 YB2.5L-BS(iGEL) 12 2.5 10 80*77*105 3.15*3.03*4.13 -  + 1.03 W 0.25 N/A 20

    YB系列 YB3L-BS(iGEL) 12 3 10 98*56*109 3.86*2.2*4.29 -  + 1.19 C6 0.3 80 35

    YB系列 YB5L-BS(iGEL) 12 5 10 119*60*129 4.69*2.36*5.08 -  + 1.77 C6 0.5 115 55

    YB系列 YB5L-BS(iGEL) 12 5 10 119*60*129 4.69*2.36*5.08 -  + 1.86 C6 0.5 80 50

    YB系列 YB6.5L-BS(iGEL) 12 6.5 10 138*65*100 5.43*2.56*3.94 -  + 1.98 C8 0.65 155 75

    YB系列 YB6.5L-BS(iGEL) 12 6.5 10 138*65*100 5.43*2.56*3.94 -  + 2.16 C8 0.65 140 75

    YB系列 YB7B-BS(iGEL) 12 7 10 148*60*128 5.83*2.36*5.04 +  - 2.21 C7 0.7 140 75

    YB系列 YB7BL-BS(iGEL) 12 7 10 148*60*128 5.83*2.36*5.04 -  + 2.21 C7 0.7 140 75

    YB系列 YB7-BS(iGEL) 12 8 10 137*76*128 5.39*2.99*5.04 +  - 2.65 C7 0.8 140 85

    YB系列 YB7L-BS(iGEL) 12 8 10 137*76*128 5.39*2.99*5.04 -  + 2.65 C7 0.8 140 85

    YB系列 YB9-BS(iGEL) 12 9 10 137*76*134 5.39*2.99*5.28 +  - 2.7 C7 0.9 140 85

    YB系列 YB9-BS(iGEL) 12 9 10 137*76*134 5.39*2.99*5.28 +  - 2.8 C7 0.9 160 100

    YB系列 YB9-BS(iGEL) 12 9 10 137*76*134 5.39*2.99*5.28 +  - 2.95 C7 0.9 180 110

    YB系列 YB10L-BS(iGEL) 12 10 10 132*88*145 5.2*3.46*5.71 -  + 3.45 C9 1 230 120

    YB系列 YB12A-BS(iGEL) 12 12 10 134*78*156 5.28*3.07*6.14 +  - 3.63 Z1 1.2 240 140

    YB系列 YB12AL-BS(iGEL) 12 12 10 134*78*156 5.28*3.07*6.14 -  + 3.63 Z1 1.2 240 140

    YB系列 YB14-BS(iGEL) 12 14 10 132*88*163 5.2*3.46*6.42 +  - 4.54 Z1 1.4 285 185

    YB系列 YB14L-BS(iGEL) 12 14 10 132*88*163 5.2*3.46*6.42 -  + 4.54 Z1 1.4 285 185

    YB系列 YB16L-BS(iGEL) 12 19 10 173*100*152 6.81*3.94*5.98 -  + 6.15 Z2 1.9 390 240

    YB系列 YB16CL-BS(iGEL) 12 19 10 173*100*175 6.81*3.94*6.89 -  + 6.25 C9 1.9 320 240

    UT系列 UTZ5S(iGEL) 12 4 10 113*70*87 4.45*2.76*3.43 -  + 1.3 C8 0.4 115 45

    UT系列 UTZ5S(iGEL) 12 4 10 113*70*87 4.45*2.76*3.43 -  + 1.4 C8 0.4 120 50

    UT系列 UTZ7S(iGEL) 12 6 10 113*70*107 4.45*2.76*4.21 -  + 2.02 C8 0.6 150 85

    UT系列 UTZ7V(iGEL) 12 7 10 113*70*121 4.45*2.76*4.76 -  + 2.28 C8 0.7 150 100

    UT系列 UTZ10S(iGEL) 12 8.6 10 150*86*94 5.91*3.39*3.7 +  - 2.85 Z1 0.86 220 120

    UT系列 UTZ12S(iGEL) 12 11.2 10 150*86*111 5.91*3.39*4.37 +  - 3.36 Z1 1.12 200 130

    UT系列 UTZ14S(iGEL) 12 11.2 10 150*86*111 5.91*3.39*4.37 +  - 3.52 Z1 1.12 230 150

    UT系列 UTX4L-BS(iGEL) 12 4 10 113*70*85 4.45*2.76*3.35 -  + 1.3 C8 0.4 115 45

    UT系列 UTX4L-BS(iGEL) 12 4 10 113*70*85 4.45*2.76*3.35 -  + 1.4 C8 0.4 120 50

    UT系列 UTX5L-BS(iGEL) 12 5 10 113*70*107 4.45*2.76*4.21 -  + 1.64 C8 0.5 125 55

    UT系列 UTX5L-BS(iGEL) 12 5 10 113*70*107 4.45*2.76*4.21 -  + 1.79 C8 0.5 130 70

    UT系列 YT7B-4(iGEL) 12 6.5 10 150*65*94 5.91*2.56*3.7 +  - 2.15 C9 0.65 150 80

    UT系列 UTX7L-BS(iGEL) 12 7 10 113*70*130 4.45*2.76*5.12 -  + 2.15 C8 0.7 135 75

    UT系列 UTX7L-BS(iGEL) 12 7 10 113*70*130 4.45*2.76*5.12 -  + 2.24 C8 0.7 140 85

    UT系列 UTX7A-BS(iGEL) 12 7 10 150*86*94 5.91*3.39*3.7 +  - 2.4 C9 0.7 180 90

    UT系列 UTX7A-BS(iGEL) 12 7 10 150*86*94 5.91*3.39*3.7 +  - 2.48 C9 0.7 185 100

    UT系列 YT9B-4(iGEL) 12 8 10 150*70*105 5.91*2.76*4.13 +  - 2.61 C9 0.8 185 100

    UT系列 UTX9-BS(iGEL) 12 9 10 150*86*107 5.91*3.39*4.21 +  - 2.93 C9 0.9 180 120

    UT系列 YT12A-BS(iGEL) 12 9.5 10 150*86*107 5.91*3.39*4.21 +  - 3.13 Z1 0.95 200 120

    UT系列 YT12A-BS(iGEL) 12 10 10 150*86*107 5.91*3.39*4.21 +  - 3.32 Z1 1 245 135

    UT系列 YT12B-4(iGEL) 12 10 10 150*70*130 5.91*2.76*5.12 +  - 3.12 C9 1 185 100

    UT系列 UTX12-BS(iGEL) 12 10 10 150*86*130 5.91*3.39*5.12 +  - 3.29 C9 1 180 100

    UT系列 UTX12-BS(iGEL) 12 12 10 150*86*130 5.91*3.39*5.12 +  - 3.87 Z1 1.2 210 140

    UT系列 UTX12-BS(iGEL) 12 12 10 150*86*130 5.91*3.39*5.12 +  - 4.12 Z1 1.2 240 165

    UT系列 YT14B-4(iGEL) 12 12 10 150*70*145 5.91*2.76*5.71 +  - 3.8 C9 1.2 185 115

    UT系列 UTX14-BS(iGEL) 12 12 10 150*86*145 5.91*3.39*5.71 +  - 4.4 Z1 1.2 220 150

    UT系列 UTX14L-BS(iGEL) 12 12 10 150*86*145 5.91*3.39*5.71 -  + 4.4 Z1 1.2 220 150

    UT系列 UTX14-BS(iGEL) 12 14 10 150*86*145 5.91*3.39*5.71 +  - 4.68 Z1 1.4 240 185

    UT系列 UTX14L-BS(iGEL) 12 14 10 150*86*145 5.91*3.39*5.71 -  + 4.68 Z1 1.4 240 185

    UT系列 UTX16-BS(iGEL) 12 14 10 150*86*161 5.91*3.39*6.34 +  - 5 Z1 1.4 235 165

    UT系列 UTX16L-BS(iGEL) 12 14 10 150*86*161 5.91*3.39*6.34 -  + 5 Z1 1.4 235 165

    UT系列 UTX16-BS(iGEL) 12 16 10 150*86*161 5.91*3.39*6.34 +  - 5.3 Z1 1.6 255 200

    UT系列 UTX16L-BS(iGEL) 12 16 10 150*86*161 5.91*3.39*6.34 -  + 5.3 Z1 1.6 255 200

    UT系列 YT20-4(iGEL) 12 18 10 177*88*155 6.97*3.46*6.1 +  - 5.9 Z2 1.8 290 200

    UT系列 YT20L-4(iGEL) 12 18 10 177*88*155 6.97*3.46*6.1 -  + 5.9 Z2 1.8 290 200

    UT系列 YT20-4(iGEL) 12 20 10 177*88*155 6.97*3.46*6.1 +  - 6.2 Z2 2 330 240

    UT系列 YT20L-4(iGEL) 12 20 10 177*88*155 6.97*3.46*6.1 -  + 6.2 Z2 2 330 240

    UT系列 UTX21L-BS(iGEL) 12 21 10 205*91*161 8.07*3.58*6.34 -  + 6.78 Z2 2.1 310 220

    UT系列 UTX24L-BS(iGEL) 12 24 10 205*91*161 8.07*3.58*6.34 -  + 7.4 Z2 2.4 400 320

  •
